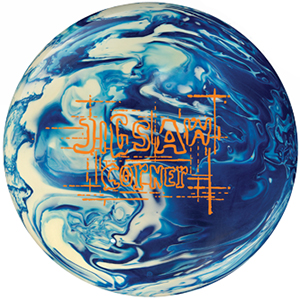

Jigsaw Corner
Asymmetrical Drilling

The Sauce Series

Hot Sauce Pearl
High Performance Drillings

Widow Series

Hammer Black Widow Nasty Bowling BallBlack Widow Nasty
Asymmetrical Drilling
Hammer Black Widow Sting Bowling BallBlack Widow Sting
Asymmetrical Drilling
Hammer Black Widow Venom Bowling BallBlack Widow Venom
Asymmetrical Drilling
Hammer Black Widow Bite Bowling BallBlack Widow Bite
Asymmetrical Drilling
Hammer Black Widow Pearl Bowling BallBlack Widow Pearl
Asymmetrical Drilling
Hammer Black Widow Bowling BallBlack Widow
Asymmetrical Drilling
Hammer Black Widow Clear Bowling BallBlack Widow Clear
Basic Drilling

No Mercy Series

No Mercy Whup'N
HART Drilling
No Mercy
HART Drilling

Raw Hammer Series

Raw Hammer Burn
Symmetrical Drilling
Raw Hammer Acid
Symmetrical Drilling
Raw Hammer Psycho
Symmetrical Drilling
Raw Hammer Anger
Symmetrical Drilling

Vibe Series

Emerald Vibe
Symmetrical Drilling
Cherry Vibe
Symmetrical Drilling

Razyr Series

Razyr Red / Black
Razyr Drilling


Please Note: Because all bowlers have different positive axis points (PAP) your layouts may not have the same appearance as the illustrations. Also the layouts are for right-handed players. Remember to flip or rotate to produce "mirror-image" for left-handed players.

Asymmetrical Drilling Layouts

Layout 1 - Skid/Flip Layouts


  • Ball Motion - Length with sharp breakpoint and aggressive backend
  • Lane Condition - Medium to Heavy Oil
  • Flare Potential - Medium
  • Pin Placement - Place pin at 5 1/2" from the positive axis point (PAP)
  • Mass Bias - Place Mass Bias in the strong position
  • Balance Hole - If needed, place the balance hole at 4" from the center of span on a line through the center of gravity

Layout 2 - All Purpose Layouts


  • Ball Motion - Length with controllable breakpoint
  • Lane Condition - Medium Oil
  • Flare Potential - Medium
  • Pin Placement - Place pin at 5" from the positive axis point (PAP)
  • Mass Bias - Place Mass Bias near the vertical axis line
  • Balance Hole - If needed, place the balance hole at 4" from the center of span on a line through the center of gravity

Layout 3 - Strong/Aggressive Layouts


  • Ball Motion - Strong and controllable hook
  • Lane Condition - Heavy Oil
  • Flare Potential - High
  • Pin Placement - Place pin at 4" from the positive axis point (PAP)
  • Mass Bias - Place Mass Bias in the strong position
  • Balance Hole - If needed, place the balance hole at 4" from the center of span on a line through the center of gravity

Layout 4 - Label layout (Smooth Arc)


  • Ball Motion - Excellend length with smooth arc
  • Lane Condition - Medium Oil
  • Flare Potential - Medium
  • Pin Placement - Place pin at 4 1/2" from the positive axis point (PAP)
  • Mass Bias - Place Mass Bias near the ball track
  • Balance Hole - If needed, place the balance hole at 4" from the center of span on a line through the center of gravity

Layout 5 - Full Roller Layout


  • Ball Motion - Strong arc
  • Lane Condition - Medium to Heavy Oil
  • Flare Potential - High
  • Pin Placement - Place pin at 3 1/2" from center of span located in the 7:30 position
  • Mass Bias - Place Mass Bias in 2:30 position relative to the center of the span

High Performance Drilling Instructions

Layout 1 - Standard Layouts

Layout 2 - Length Layouts


Layout 3 - Strong/Aggressive Layouts


Layout 4 - Early Hook Layouts


Layout 5 - Full Roller Layouts



Symmetrical Drilling Instructions

Layout 1 - Standard Layout


  • Ball Motion - Length with aggressive backend
  • Lane Condition - Medium to Heavy Oil
  • Flare Potential - Medium
  • Pin Placement - Place pin at 4 1/2" from the positive axis point (PAP)
  • Balance Hole - If needed, place the balance hole at 4-5" from the center of span on a line through the center of gravity

Layout 2 - Length Layout


  • Ball Motion - Length with less total hook
  • Lane Condition - Light to Medium Oil
  • Flare Potential - Low
  • Pin Placement - Place pin at 5 - 5 1/2" from the positive axis point (PAP)
  • Balance Hole - If needed, place the balance hole at 4-5" from the center of span on a line through the center of gravity

Layout 3 - Strong Layout


  • Ball Motion - Strong and controllable hook
  • Lane Condition - Heavy Oil
  • Flare Potential - High
  • Pin Placement - Place pin at 3 1/2" - 4" from the positive axis point (PAP)
  • Balance Hole - If needed, place the balance hole at 4-5" from the center of span on a line through the center of gravity

Layout 4 - Low RG Layout


  • Ball Motion - Early Hook with smooth arc
  • Lane Condition - Fresh backends and wet/dry
  • Flare Potential - Low
  • Pin Placement - Place pin at 1 - 2" from the positive axis point (PAP)
  • Balance Hole - If needed, place the balance hole at 4-5" from the center of span on a line through the center of gravity

Layout 5 - Full Roller Layout


(For this layout we will select a ball with a pin distance of 2-5" from the CG)
  • Ball Motion - Strong arc
  • Lane Condition - Medium to Heavy Oil
  • Flare Potential - Medium
  • Pin Placement - Place pin at 3 1/2" from the center of span located in 7:30 position

Razyr Drilling

No Mercy Series Drilling Instructions

Layout 1 - Most Aggressive

  • Ball Motion - Length with aggressive backend
  • Lane Condition - Medium to Heavy Oil
  • Flare Potential - High (5"+)
  • Pin Placement - Place pin at 4 1/2 - 5 1/2" from the positive axis point (PAP)
  • HART Placement - Place HART in or near the ball track keeping side weight and finger/thumb weight to less than 1 ounce

NOTE: For bowlers with higher rev rates, place the pin at 5 - 5 1/2" from the bowler's positive axis point.
For bowlers with lower rev rates, place the pin at 3 1/2 - 4" from the positive axis point

Hammer HART Drilling Layout

Layout 2 - Strong Arc

  • Ball Motion - Strong arcing hook (about 2-4 boards less than Drilling #1)
  • Lane Condition - Medium Oil
  • Flare Potential - Medium (3-5")
  • Pin Placement - Place pin at 4 - 5" from the positive axis point (PAP)
  • HART Placement - Place HART 2" right of the ball track
  • Balance Hole - If needed, place the balance hole 4" from the center of the span on a line through the center of gravity

Hammer HART Drilling Layout

Layout 3 - Controlled Arc

  • Ball Motion - Controlled arc (about 4-6 boards less than Drilling #1)
  • Lane Condition - Light to Medium Oil
  • Flare Potential - Medium (2-4")
  • Pin Placement - Place pin at 5 - 5 1/2" from the positive axis point (PAP)
  • HART Placement - Place HART 1" right ofthe ball track keeping side weight and finger/thumb weight to less than 1 ounce
Hammer HART Drilling Layout

Layout 4 - Length with Smooth Arc

  • Ball Motion - Excellent length with smooth arc (about 6-8 boards less than drilling #1)
  • Lane Condition - Light Oil
  • Flare Potential - Low (0-2")
  • Pin Placement - Place pin at 5 - 5 1/2" from the positive axis point (PAP)
  • HART Placement - Place HART 3" right of the ball track
  • Balance Hole - If needed, place the balance hole 4" from the center of the span on a line through the center of gravity

Hammer HART Drilling Layout

Layout 5 - Full Roller

  • Ball Motion - Length with aggressive backend
  • Lane Condition - Medium to Heavy Oil
  • Flare Potential - High (5"+)
  • Pin Placement - Place pin at 4 1/2 - 5 1/2" from the positive axis point (PAP)
  • HART Placement - Place HART in or near the ball track keeping side weight and finger/thumb weight to less than 1 ounce

Pro Drilling Instructions

Note: For reaction adjustments, consult the Ball Surface Reaction Guide.
Be sure to check for excess side weight and finger/thumb weight, as a balance hole may be necessary for any of these layouts. If one is required, draw a line from the center of the grip through the CG and extend to the PAL. This will be the location of the balance hole.

Layout 1

Storm Pro Drilling Layout 1

With this layout we place the pin 5-���¯�¿�½��¯��¿��½����¯����¿����½���¯�¿�½��¯��¿��½���¯�¿�½����¾" from the PAP, above the finger holes, to produce length on drier conditions.

Next we select a MB (Mass Bias) position suitable for our breakpoint shape.
(A) MB in the Ball Track designed to produce a late and smooth breakpoint.
(B) MB in the Strong Position This will produce an earlier and shaper breakpoint than Position A.
- Good for extreme entry angle!
(C) MB on the PAL produces the earliest breakpoint of three positions while providing a controllable and "readable" backend.
- Works great on heavy oil patterns!


Layout 2

Storm Pro Drilling Layout 2

With this layout, we place the pin 4-���¯�¿�½��¯��¿��½����¯����¿����½���¯�¿�½��¯��¿��½���¯�¿�½����¼" from the PAP. This position will produce medium to high flare, great for players trying to "open up" on a medium to heavy oil lane condition.

For bowlers with medium to high rev rates, this position will often produce the most overall hook throughout the entire lane.

Now select a MB (Mass Bias) position.
(A) locate the MB halfway between the ball track and PAL to produce a sharp breakpoint
(B) Place the MB at the PAL for an earlier, smoother breakpoint.
(C) Place the MB 2" past the PAL for a very heavy midlane roll on long oil patterns.


Layout 3

Storm Pro Drilling Layout 3

Place pin and CG 4-���¯�¿�½��¯��¿��½����¯����¿����½���¯�¿�½��¯��¿��½���¯�¿�½����½" from PAP.

Use scale to determine static balance.

Produces length and an arcing backend.

A layout every player should have in their bag.


Layout 4

Note: To remove excess finger weight, drill finger holes 2.5" deep.
Storm Pro Drilling Layout 4

Place pin and CG 3-3/8" from PAP.

Use scale to determine both side and finger weight.

Locate balance hole on PAP and remove excess side weight to ���¯�¿�½��¯��¿��½����¯����¿����½���¯�¿�½��¯��¿��½���¯�¿�½����¾ oz positive.

Produces maximum flare and hook

Works especially well for Tweeners and Strokers!


Layout 5

Storm Pro Drilling 5

Place pin CG 5-1/2 from PAP.

Locate Mass Bias in between ball track and strong position.

Use scale to determine static balance.

To locate a balance hole if necessary, draw a line from grip center through CG and extend to axis midplane.

High track players will benefit from this layout.


Layout 6

Storm Pro Drilling 6

Place pin and CG 4-1/2" from PAP.

Place Mass Bias on the axis midplane.

to locate the balance hole if necessary, draw a line from grip center through CG and extend through axis midplane.

This drilling will help generate more midlane roll.
